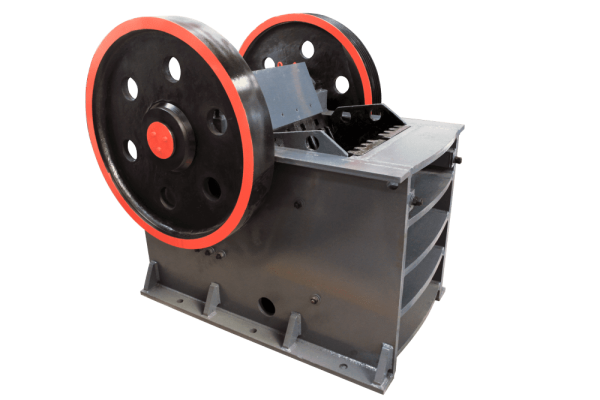

PE Jaw Crusher

Simple design structure, excellent working performance

PE Jaw Crusher, as a classical primary crushing machine with stable performances, is widely used in metallic and non-metallic ore crushing, building aggregate crushing and sand making.

Materials:Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore

Description

Product Advantages

PE Jaw Crusher is researched and developed based on century-old accumulations and inheritances. Therefore, performances of PE Jaw Crusher are totally reliable.

Integrated steel structures are used for the base of bearing. The crushing chamber is deep without dead zone, increasing the capacity and the output.

When the machine is overloaded, the elbow plate transmission device, designed by ZENITH, is automatically off so that the operation can stop to ensure production safety.

ZENITH’s PE Jaw Crusher has different models to comprehensively cover all kinds of crushing demands at present market.

Working Principle of PE Jaw Crusher

Taking the motor as power, the PE Jaw Crusher drives the eccentric shaft by the V-belt and the sheave through the motor pulley, to make the movable jaw do reciprocating movement according to the predetermined trajectory. Then it crushes materials inside the crushing cavity formed by the fixed plate, the movable plate and the side guard plate and discharges the materials from the lower discharge port.

Parameters

Model Feed opening (mm) Maximum feeding size (mm) Range of discharge opening (mm) Capacity (t/h) Speed (r/min) Power (kW) Overall dimension (mm)
PE500×750 500×750 425 50-100 45-100 275 55 1890×1916×1870
PE600×900 600×900 500 65-160 90-180 250 55-75 2520×1840×2303
PE750×1060 750×1060 630 80-140 130-260 250 90-110 2620×2302×3110
PE900×1200 900×1200 750 95-200 220-380 200 132 3789×2826×3025
PE1000×1200 1000×1200 850 195-265 280-500 200 132 3889×2826×3025
PE1200×1500 1200×1500 1020 150-300 460-900 190 200 4930×3150×3700
